This article gives advice on image sizes for the various parts of Atlas, including Headers, Sections, Thumbnails and Webparts.
Topics covered in this article
Introduction
Modern pages and web parts are designed to be fully responsive across devices, meaning that images used in web parts will scale differently depending on where they are shown, which layout is used, and the device on which they are being viewed. For example, modern pages are designed to look great on mobile devices, and automatic image scaling helps create that attractive experience.
What image sizes work best?
Because of the responsive page design, there is not a specific height or width in pixels that will ensure that an image will maintain a specific shape across devices and layouts. Images are resized and cropped automatically to show the best possible result across a variety of devices and layouts. However, there are some guidelines that can help you make sure your images look great across your Atlas platform. Finding the best image sizes for your page depends on these factors:
- Aspect ratio: the relationship between height and width of images
- Column layout: the type and number of columns on your page
- Web part layout: the layout you choose for the web part in which the image is being used
Aspect ratio
An aspect ratio is the relationship between width and height of images. It is usually expressed as two numbers, such as 3:2, 4:3 or 16:9. The width is always the first number. As an example, a ratio of 16:9 could be 1600 pixels in width by 900 pixels in height. Or, it could be 1920 x 1080, 1280 x 720, or any other width/height combinations that can be calculated to equal 16:9. You can find aspect ratio calculators online and in some photo editing tools to help you determine the aspect ratios of your images.
In most cases, images in modern web parts work best across layouts and devices when they have an aspect ratio of either 16:9 or 4:3, depending on the layout.Column layouts
A page can be laid out with sections that include different column types and layouts, such as full-width columns, one column, two columns, three columns, one-third left and one-third right columns. A general rule for images expected to fill the width of a column is that they be at least as wide as the column in which they are placed. For example, an image in an image web part in one column should be at least 1204 pixels wide. Following are the width guidelines for each of the column layouts:
Layout | Width in Pixels |
Full-width column | 1920 |
One column | 1204 |
Two columns | 586 per column |
Three columns | 380 per column |
One-third left column | 380 for left column; 792 for right column |
One-third right column | 792 for left column; 380 for right column |
Because of the responsive nature of pages, images in full-width columns will always display at full-width of your screen with an automatic height based on screen size.
The height of images placed within other column layouts will depend on your aspect ratio. Here are height/width guidelines for 16:9 and 4:3 aspect ratios (rounded up/down to the nearest pixel). This is helpful to keep your images at a width and height that scales appropriately for mobile devices, for example.
Aspect Ratio Layout | 16 x 9 (Width x Height in pixels) | 4 x 3 (Width x Height in pixels) |
One column | 1204 x 677 | 1204 x 903 |
Two columns | 586 x 330 | 586 x 439 |
Three columns | 380 x 214 | 380 x 285 |
One-third L column |
380 x 446 for left column 792 x 446 for right column |
380 x 594 for left column 792 x 594 for right column |
One-third R column |
792 x 446 for left column 380 x 446 for right column |
792 x 594 for left column 380 x 594 for right column |
Web part layouts
The layouts in the web parts you use will also affect how your images scale. The following examples show different web parts and their layouts within one column, and the aspect ratios that are used in each.
Images will be resized to fill the space, usually to the width of the area with the height automatically reduced by cropping the top and bottom. Use the 16:9 or 4:3 aspect ratio for these images.
This image which has an original aspect ratio of 16:9:

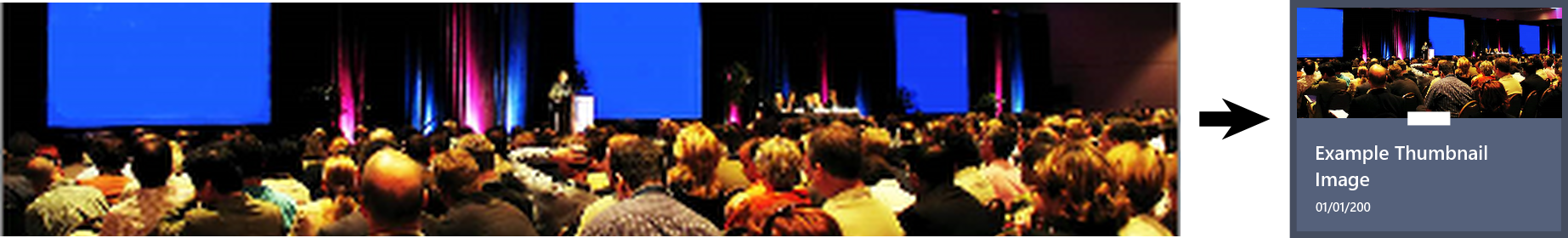

The following are examples of this image shown in a two and three column pages, with In Focus layouts.
In Focus
Depending on the layout of the in focus webpart and also the type of section column layout used, the size of the thumbnail will be altered dynamically.

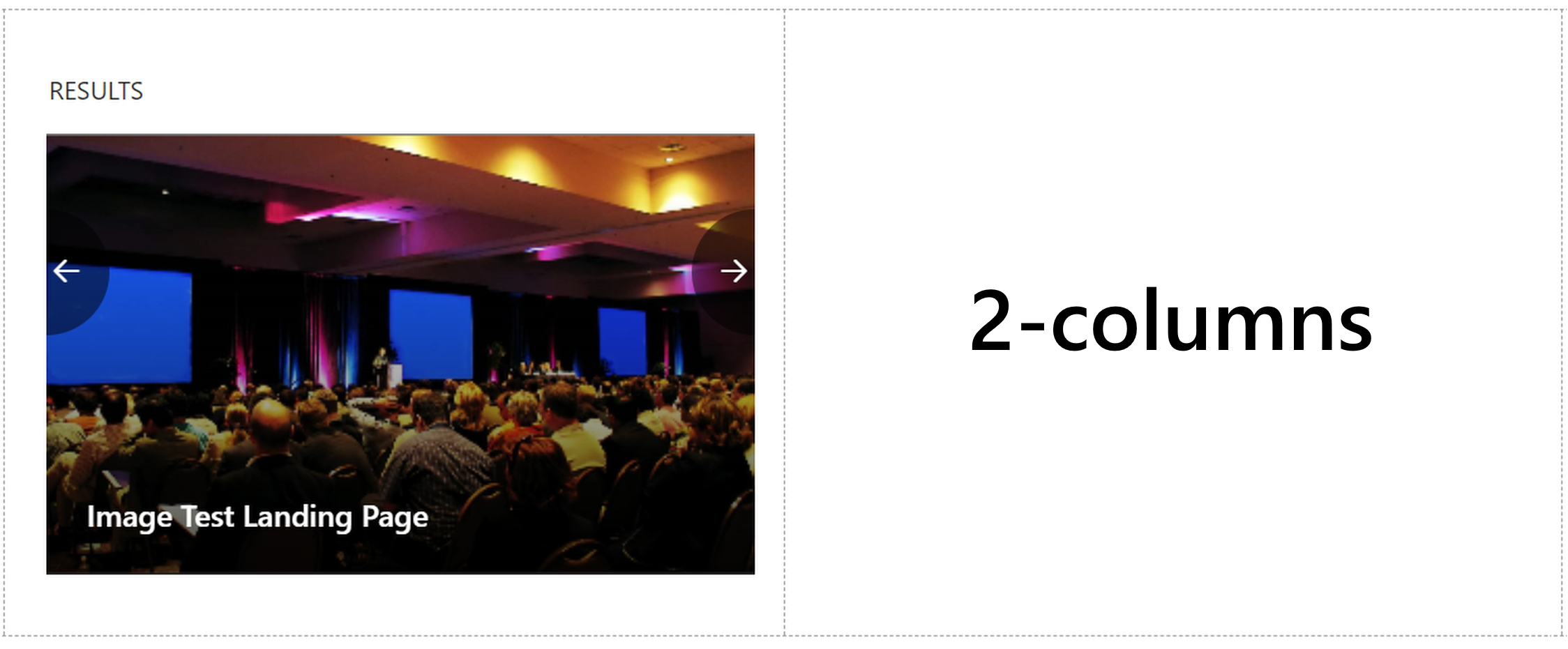

Carousel Layout

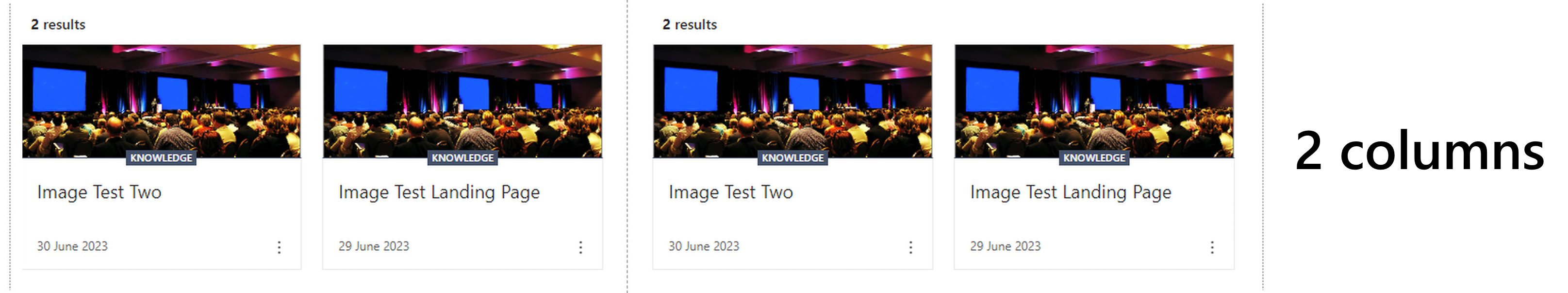

In the example below the extra third column means only 1 card shows per webpart (3 thumbnails across the page). With 2 columns, each webpart has the space to display 2 tiles (=4 thumbnails across the page). So as there’s more thumbnails in the 2 column section, the width is smaller in each, meaning it’s stretched less to fit.
This also shows the aspect ratio changing from >16:9 in 3 columns to 4:3 in 2 columns.
Hero Carousel Layout
As there is only 1 image displayed at a time it will fill the column. With 1 or 2 columns you will get a 16:9 image which will show the whole, uncropped image. However, 3 columns will display a 4:3 image.
In the spotlight Layout

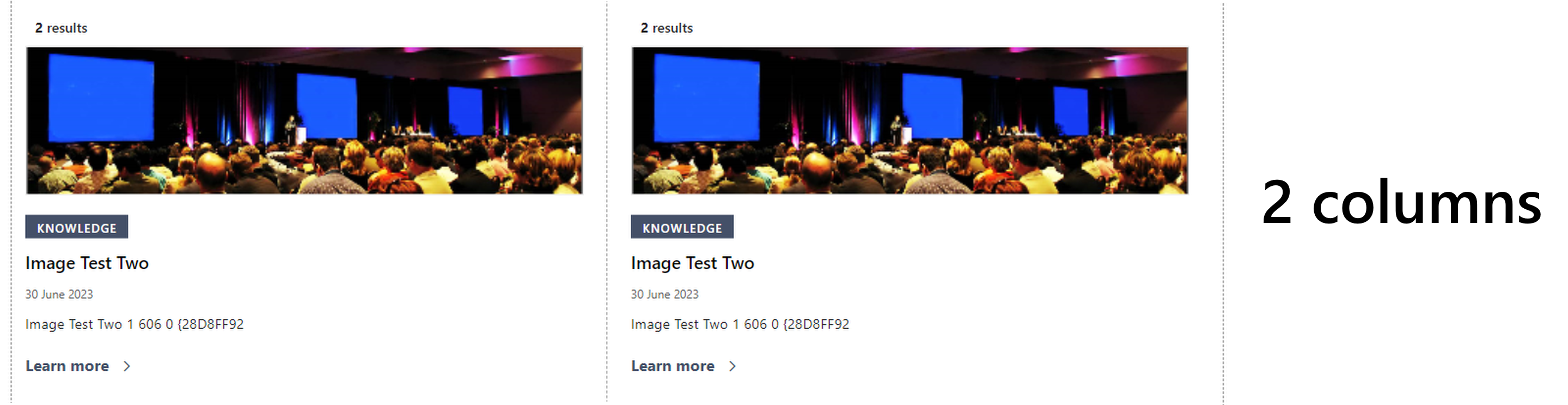

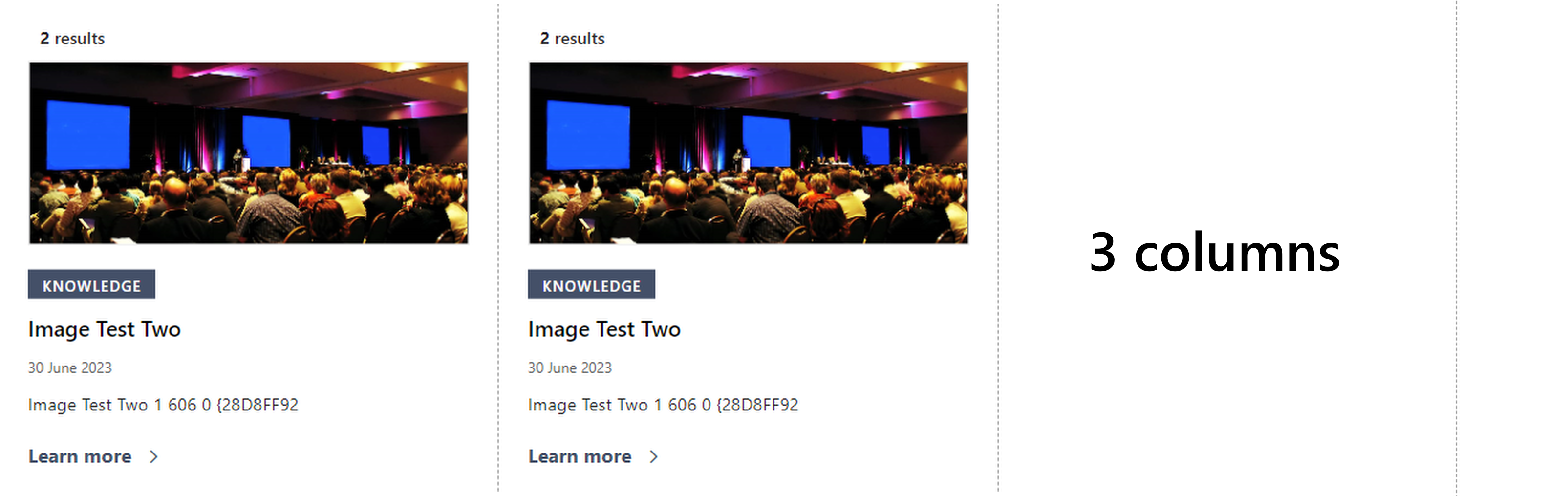

The images here are cropped to a banner like format, which are wider than the normal 16:9. 1 and 2 columns images are wider than if 3 columns are used.
Tiles Layout

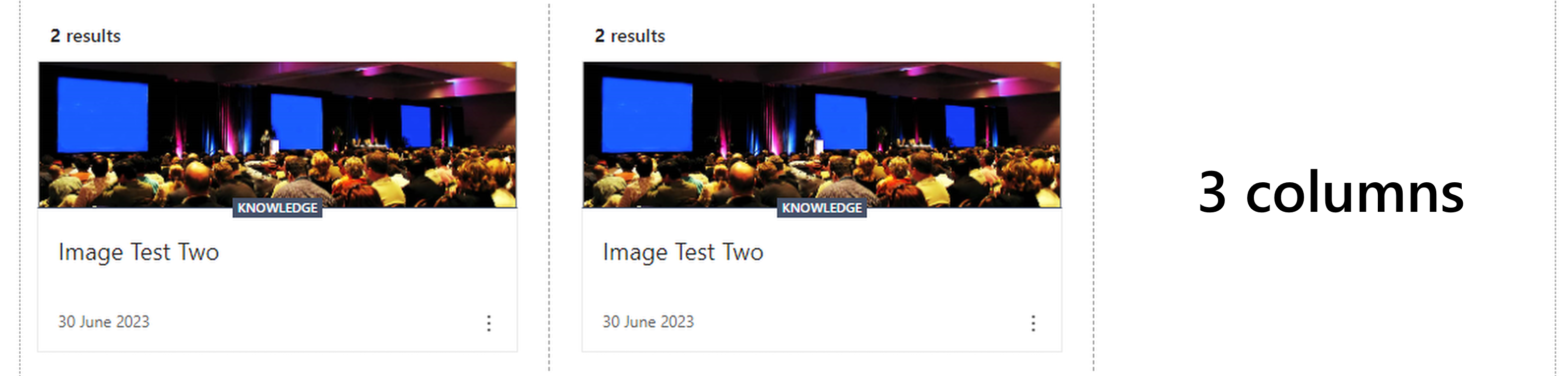

The image aspect ratio is very similar in 1, 2 columns and 3 columns and is a cropped wider than 16:9. Three columns will only display 1 image in the webpart.
Visual Tiles Layout
Visual Tiles have the same aspect ratios as Tiles
Recommended Thumbnail sizes
Minimum size recommendations:
- Tiles: 540 x 110 (Width x Height in pixels)
- Visual Tiles: 540 x 150 (Width x Height in pixels)

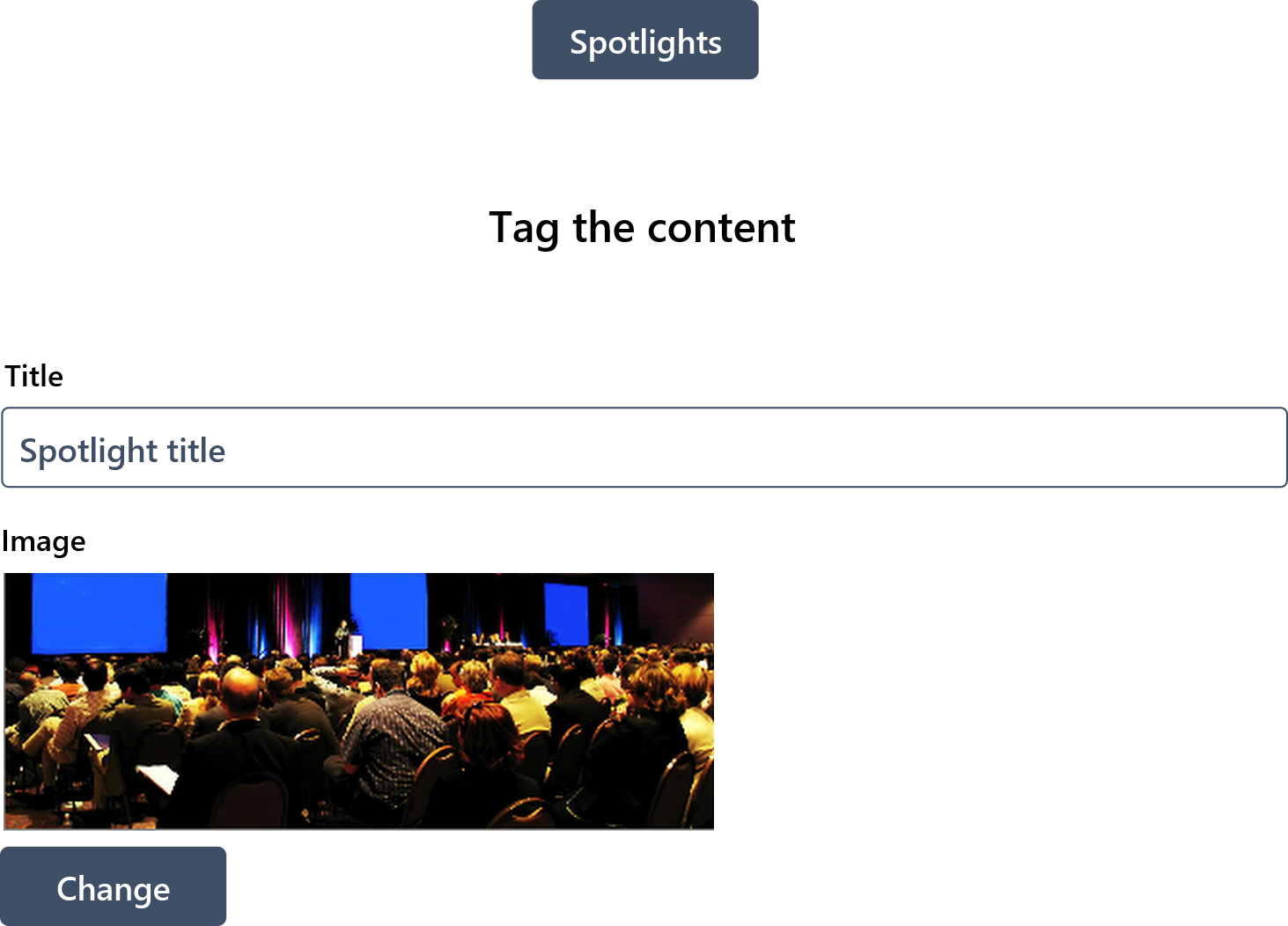

- In the Spotlight: 700 x 400 (Width x Height in pixels)
Cards coming from a page: (News, Events, or Knowledge)
Thumbnail comes from the page heading, this should be 16:9 and at least 1Mb
Card only Images (External Insights or Spotlights)
Recommended size 540 x 110 (Width x Height in pixels)
Tips:
When you add an image to a page title area or hero web part, it is also best to set the focal point in the area of the image that you want to always display. To learn more about setting a focal point for these two scenarios, see Change the focal point of an image in the Hero web part and Customize the title area in a page.
Site header image recommendations
In addition to pages, you may want to add custom logos or images in an extended layout. Here are size recommendations for those elements.
Element |
Description |
Recommendation Width x Height in pixels |
Site logo |
Larger logo that can be non-square and transparent depending on the design uploaded |
192 x 64 Format: PNG, JPEG, SVG (SVG not allowed on group-connected sites) |
Site logo thumbnail |
A square logo thumbnail that is used if no site logo is uploaded or in places that a square format is required This element is required. |
64 x 64 Format: PNG, JPEG, SVG (SVG not allowed on group-connected sites) |
Extended layout site logo |
The extended header layout has an extended site logo width. |
300 x 64p Format: JPEG, PNG, SVG |
Extended Layout background image |
A new background image that can be utilized with the extended header. |
2560 x 164 Format: JPEG, PNG |
